Compression Testing

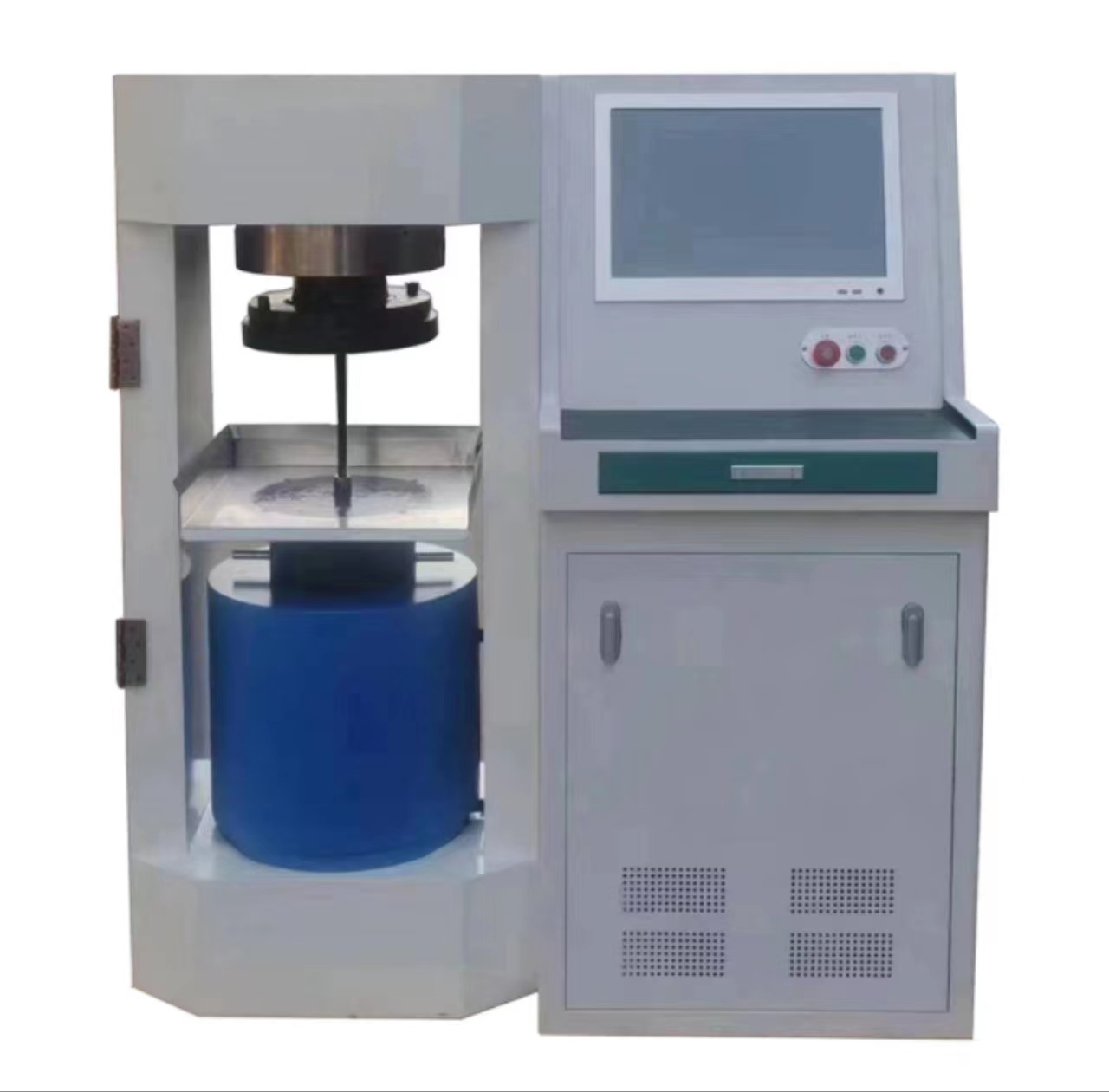

DYE-3000SF
3000 kN Servo Compression Testing Machine
Heavy-duty compression testing system with cast-frame load-bearing structure, integrated control cabinet, radial piston pump and industrial computer.
3000 kNClass 0.5
Request a quotation ↗ All productsPerformance & Functionality
Key Features
✓ 3000 kN maximum test force
✓ High-precision spoke-type load sensor
✓ Low-noise RK-series radial piston pump
✓ 17-inch industrial computer
Technical Data
Technical Specifications
Specifications reproduced from the WePros product catalog. Confirm final configuration prior to ordering.
| Parameter | DYE-3000SF |
|---|---|
| Maximum test force | 3000 kN |
| Accuracy class | 0.5 |
| Relative force indication error | Within ±0.5% |
| Force measurement range | 1%–100% FS |
| Maximum compression clearance | 330 mm |
| Maximum piston stroke | 150 mm |
| Power supply | AC380V ±10%, 2 kW |
| Main unit size | 700 × 500 × 1500 mm |
| Control cabinet size | 600 × 500 × 1500 mm |
| Net weight | 2300 kg |
Applicable / Referenced Standards
Please confirm project-specific standards and configuration before ordering.
Typical Applications
Heavy-duty concrete • Cement • Compression strength
Need Specifications or a Quote?
Let us know your material, specimen size, testing standards and required capacity.
