Compression & Flexure
LCD-300-10S

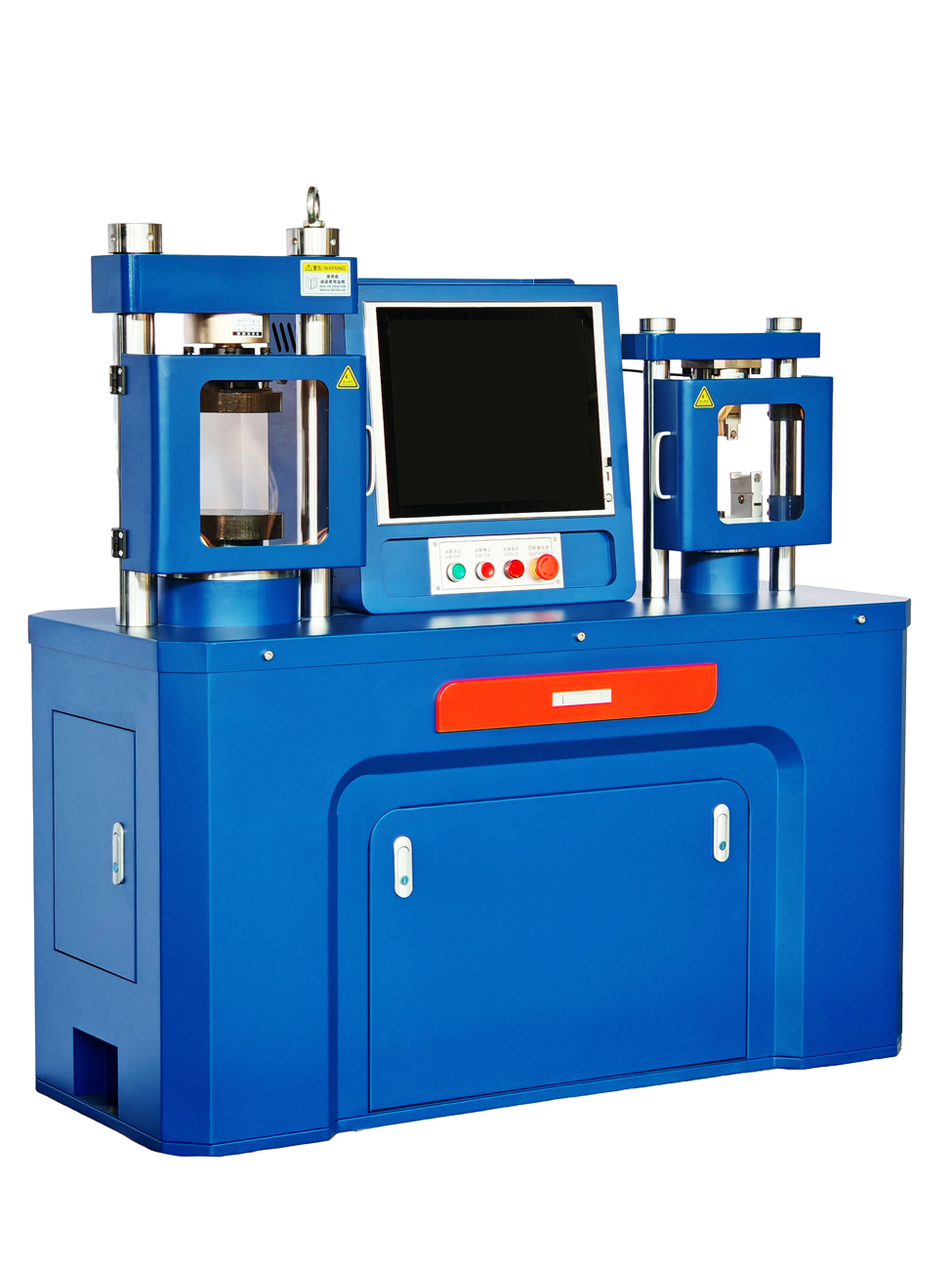

Compression & Flexure Testing Machine
Integrated compression and flexure testing for cement mortar and concrete, with hydraulic loading and computer-based measurement.
300 / 10 kNClass 0.5
Request a quotation ↗ All productsPerformance & Functionality
Key Features
✓ 300 kN compression and 10 kN flexure
✓ Integrated spring-free flexure fixture
✓ Loading-rate control and real-time curves
✓ Maximum-force holding
Technical Data
Technical Specifications
Specifications reproduced from the WePros product catalog. Confirm final configuration prior to ordering.
| Parameter | Compression | Flexure |
|---|---|---|
| Maximum test force | 300 kN compression | 10 kN flexure |
| Force measurement range | 1%–100% FS | 1%–100% FS |
| Test space | 180 mm | 180 mm |
| Piston stroke | 80 mm | 60 mm |
| Upper / lower platen | Ø160 / Ø160 mm | — |
| Power supply | 3-phase 4-wire AC380V / 50Hz | Same |
| Motor power | 0.75 kW | 0.75 kW |
| Overall size | 1270 × 530 × 1260 mm | Same |
| Weight | 360 kg | Same |
Applicable / Referenced Standards
GB/T 2611, GB/T 17671, GB/T 16826, GB/T 50081, JC/T 960
Typical Applications
Cement mortar • Concrete • Compression and flexural strength
